Product Overview

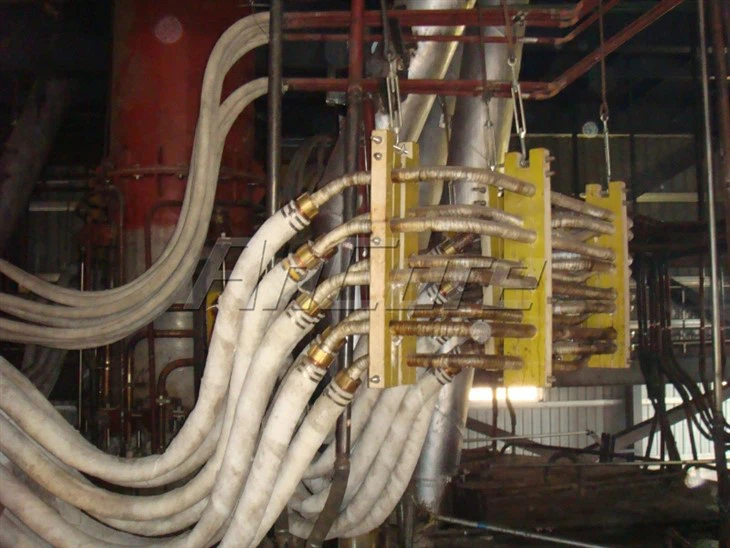

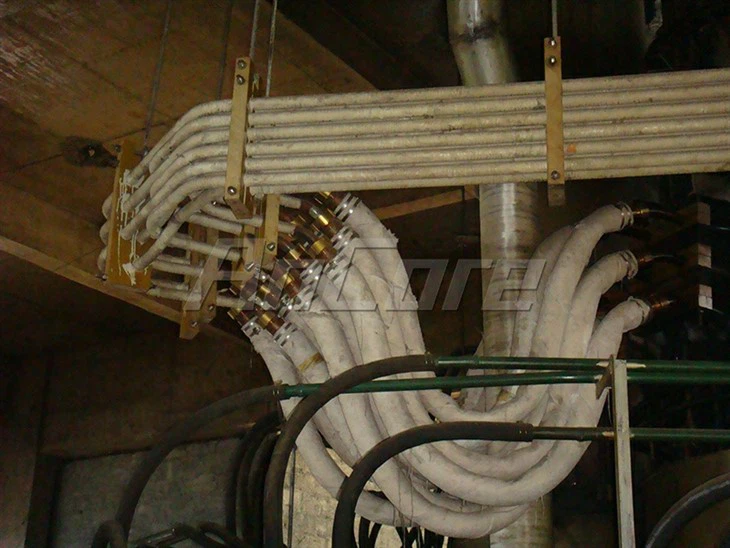

The Heavy Current system is a core component of the electrical system in Electric Arc Furnaces (EAF) and Submerged Arc Furnaces (SAF). It is primarily used to transmit extremely high current from the furnace transformer to the electrodes or in-furnace load in a stable and continuous manner. Its performance directly affects power utilization efficiency, operational stability, and the service life of key furnace components.
Technical Features
1. Low-Resistance Conductive Structure Design
High-conductivity copper or copper alloys are used. By optimizing cross-sectional area and connection methods, line resistance and contact resistance are effectively reduced, minimizing power losses during transmission.
2. Adaptation to High Current and Severe Thermal Loads
The structural design fully considers Joule heating generated by high current. Water-cooling or combined cooling solutions can be applied to help conductive components maintain appropriate operating temperatures during continuous service.
3. Modular and Customized Configuration
The system can be customized according to furnace type, current rating, and site layout. This facilitates installation and maintenance while ensuring compatibility with existing EAF or SAF systems.
4. Stable Mechanical and Electrical Connections
Critical connection points adopt reliable clamping and compensation structures to reduce the risk of poor contact caused by thermal expansion, vibration, or electromagnetic forces.
Product Advantages
1. By reducing transmission losses, the heavy current system enables a greater portion of electrical energy to be effectively utilized in the smelting process, thereby improving overall energy efficiency.
2. Proper heat dissipation and connection design, together with stable high-current transmission, help reduce arc fluctuation and abnormal tripping, supporting consistent smelting conditions.
3. The system is designed for long-term stable operation and is suitable for high-load, long-campaign metallurgical production.
Application
- Electric Arc Furnaces (EAF)
- Submerged Arc Furnaces (SAF)
- High-power smelting and alloy melting systems
FAQ
Q1: What is the main function of a heavy current system?
A: It transmits extremely high current from the transformer to the electrodes or furnace load in a stable manner and serves as a key electrical channel for normal furnace operation.
Q2: Why is cooling required for a high-current system?
A: High current generates significant heat during transmission. Cooling systems help control temperature rise and ensure the reliability and service life of conductive components.
Q3: Can the heavy current system be customized for different furnaces?
A: Yes. The system can be custom-designed according to current rating, furnace configuration, and available site space.
Q4: What conductive materials are typically used?
A: High-purity copper or copper alloys are commonly used to balance electrical conductivity and mechanical strength.
Q5: How does a heavy current system affect energy consumption?
A: A well-designed heavy current system reduces transmission losses and has a positive impact on overall power consumption and operational stability.
