Are you looking to upgrade your steel production capacity with reliable, modern technology? Investing in a 30T Three Phase Electric Arc Furnace is a significant step for any plant aiming for efficiency and high-quality output. Whether you are scaling up your operations or replacing legacy equipment, understanding the mechanics of this furnace is essential for your success. We specialize in advanced melting solutions, and I am here to break down exactly why our HX-30t model stands out in today's competitive global market.

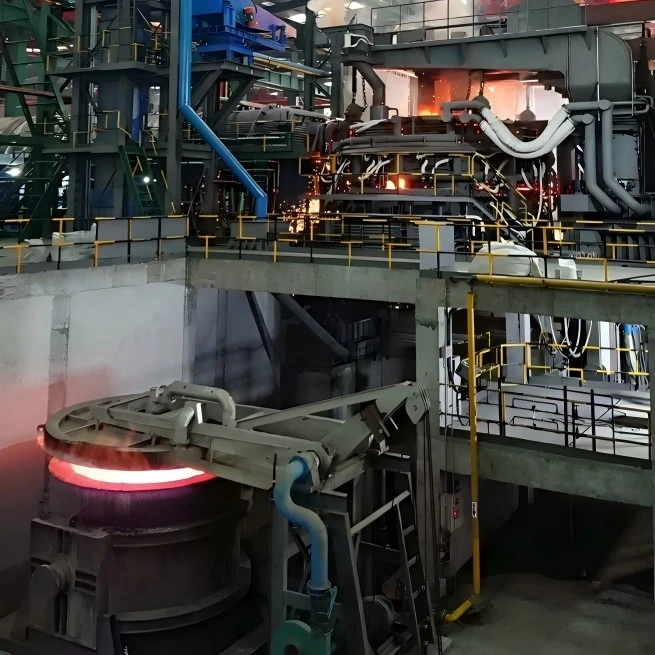

​The 30-ton capacity AC electric ace furnace represents the perfect balance between power and precision. Designed for modern steelmaking, it utilizes high-performance three-phase electric arc technology to melt scrap metal into high-quality liquid steel.

​Our engineering team focuses on energy-efficient designs that minimize your operational costs while maximizing output. From the initial site survey to final commissioning, we provide a complete, one-stop service model. This ensures that your facility achieves a smooth transition from blueprint to full-scale production. You get a machine that is not only powerful but also environmentally responsible and easy to control.

​When you evaluate a 30 metric ton arc steelmaking equipment, you need to look at the specifications that drive performance. Our HX-30t model is built to meet rigorous industrial standards. Below are the core technical values that define its operational capacity:

• ​   Nominal Capacity: 30 Metric Tons.
•   Power Supply: Three-phase AC electric arc system.
•   ​Transformer Capacity: Optimized for rapid melting cycles.
•   ​Electrode Diameter: Engineered for optimal current density and longevity.
• ​  Control System: Intelligent PLC-based automation for precise temperature regulation.
•   Tilt Angle: Designed for efficient slag removal and safe tapping.

​These parameters ensure your plant maintains consistent productivity. You can expect a stable arc, which directly leads to improved steel purity and higher energy efficiency.

​The mechanical structure of this furnace is designed for durability under extreme thermal conditions. The main shell, built from high-strength steel plates, houses the refractory lining. This lining protects the structural integrity while containing the molten metal.

​The furnace works by using three graphite electrodes that conduct a high-current electric arc through the scrap metal. The intense heat generated by the arc melts the solid charge into a liquid state within minutes.

​Our mechanical design includes several key features:

•   ​Water-Cooled Panels: These manage the intense heat, extending the life of the furnace shell significantly.
• ​  Hydraulic Tilting Mechanism: This allows for precise control during the tapping process, ensuring safety and minimal waste.
• ​  Roof Lift-and-Swing System: This facilitates fast scrap charging, which reduces downtime between heats.

​This robust construction means your maintenance team spends less time on repairs and more time on production.

​The electrical system is the "heart" of this high-performance industrial arc melting furnace. It transforms high-voltage grid power into the high-current, low-voltage power needed to sustain an electric arc.

​Key components include:

• ​  Furnace Transformer: This component is the workhorse of your operation. It provides the specific voltage steps required for melting, refining, and holding stages.
• ​  Current-Conducting Arms: These deliver power to the electrodes with minimal loss, ensuring efficiency.
• ​  Automatic Electrode Regulator: This system monitors the arc length in real-time. It moves the electrodes up and down to keep the arc stable, preventing damage to the furnace roof.

​By automating these electrical processes, you eliminate human error. You achieve a consistent melt chemistry, which is vital for meeting the quality requirements of your clients.

​We understand that a furnace is a long-term investment. That is why our commitment goes beyond just delivering hardware. We offer a comprehensive support structure designed to protect your investment.

​Our service model covers every phase of your project:

• ​  Process Design: We tailor the furnace setup to your specific raw materials and production goals.
• ​  Precision Manufacturing: We follow strict quality control protocols for every component.
•   ​On-site Installation and Commissioning: charge to instruct technical assembling and commissioning, training operators on worksite.
•   ​Dedicated After-sales Maintenance: If products problem occurred, after client's information received, we will reply and give treaty measures in 24 hours. If worksite service is required, we will send service man in 72 hours.
•   Quality Assurance: At the condition of client following the specification of transport, storage, assembling and operation, from the date of goods send out, in 12 months if the product can not operate normally or damage happened caused by manufacture error, it is our responsible to repair or replace. It is free of charge. Pieces that are wear and tear easily are except.

​Do you have specific questions about how an 30 metric ton arc steelmaking equipment system can fit into your current production line? Reach out to our team at E-Mail:info@ancorefurnace.com or WhatsApp:+86 17719557277 for a personalized consultation. We are ready to help you move from your current blueprints to high-performance production.

Fast response within 24 hours and customized solutions available.
